Product Details

Energy Efficient
Low Profile

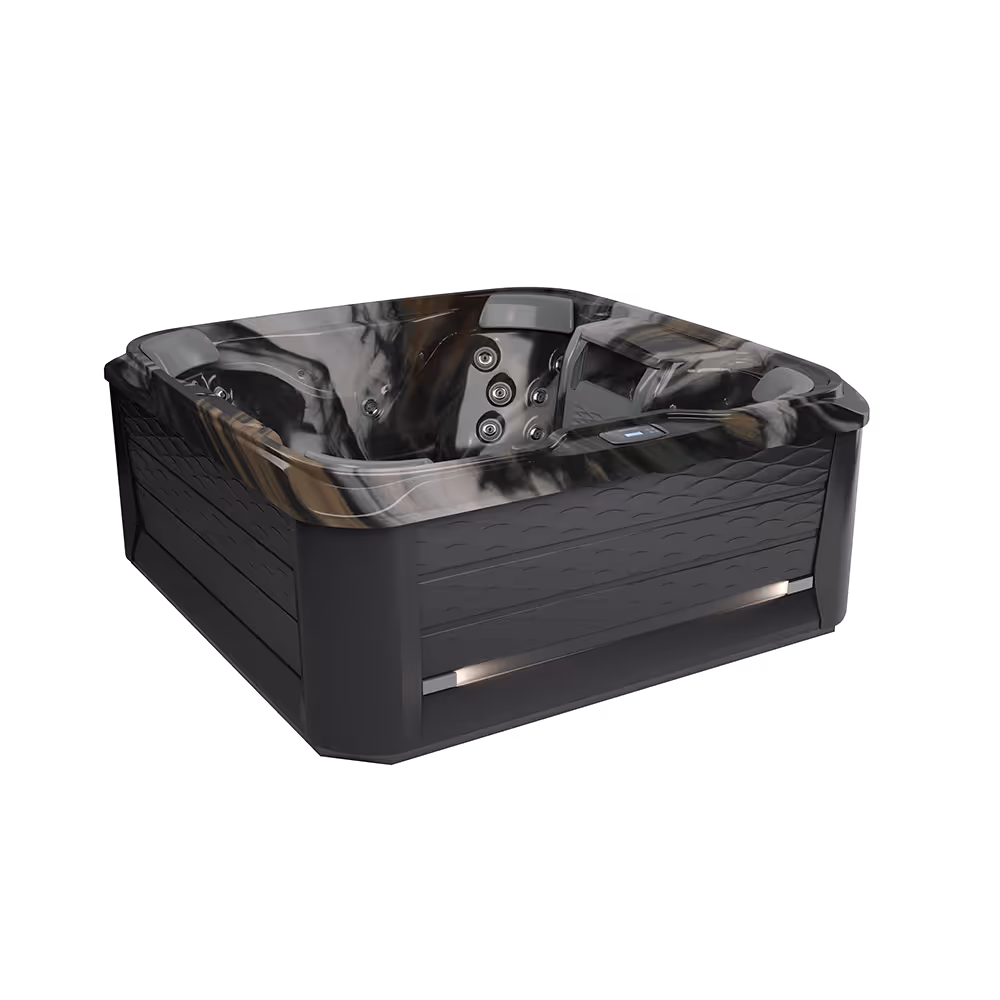

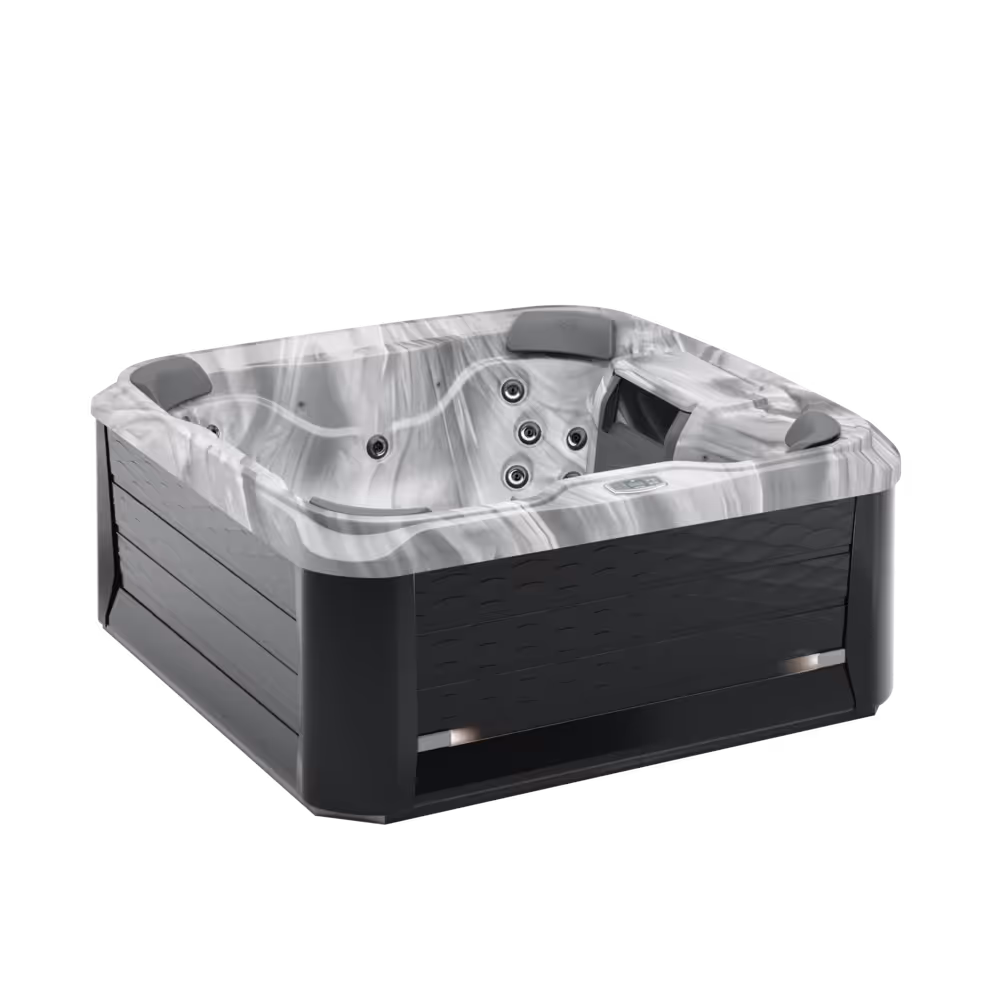

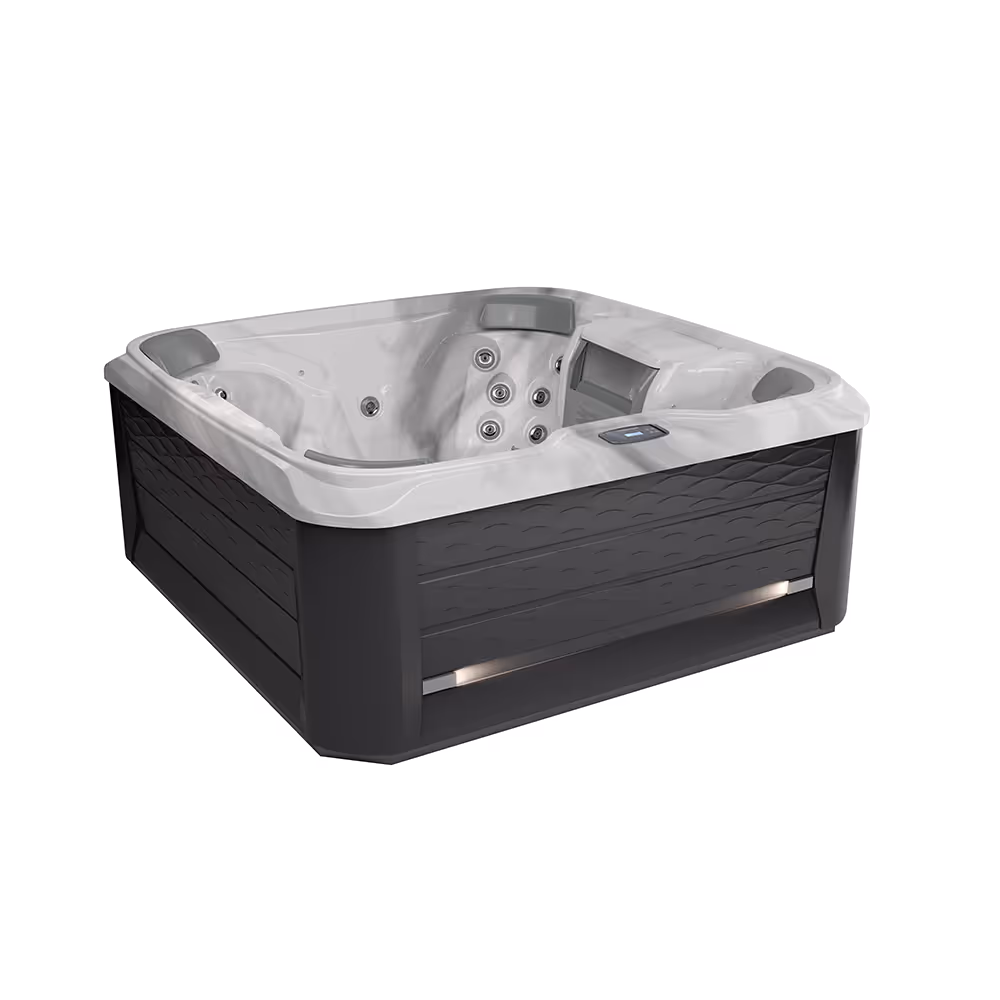

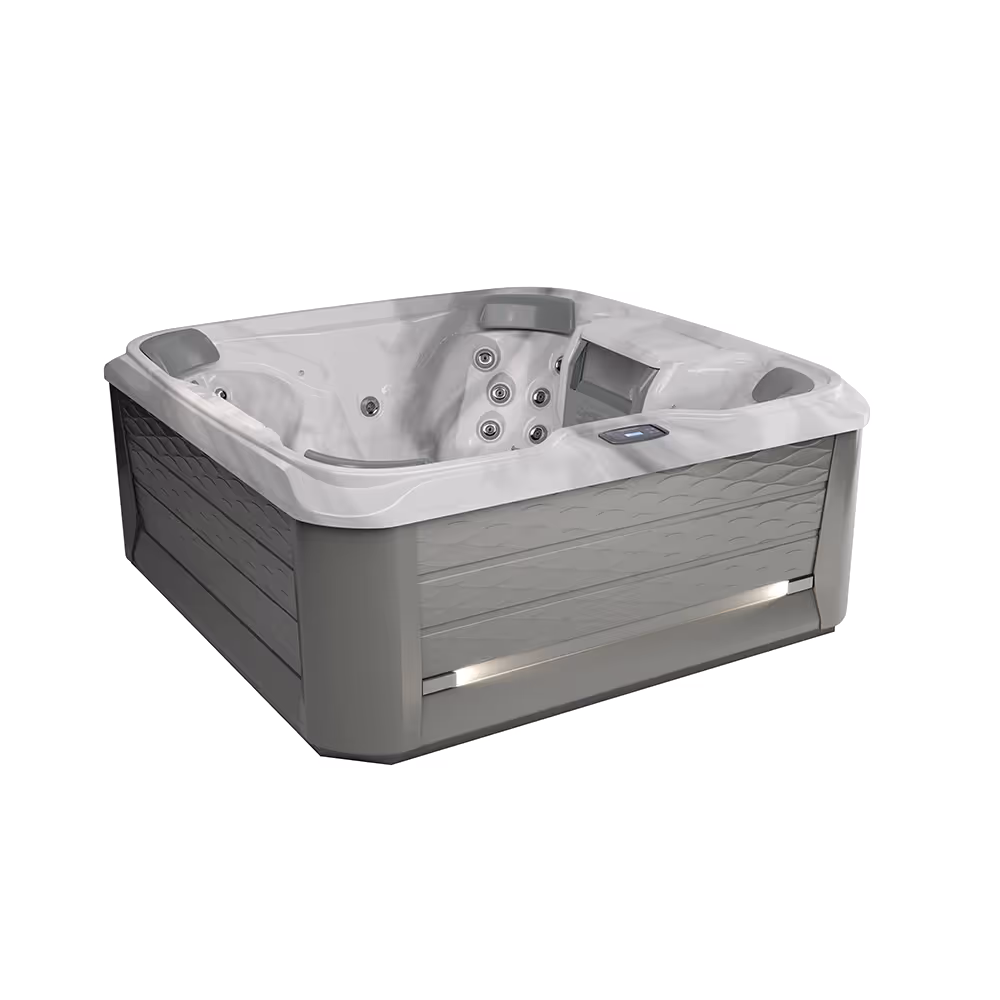

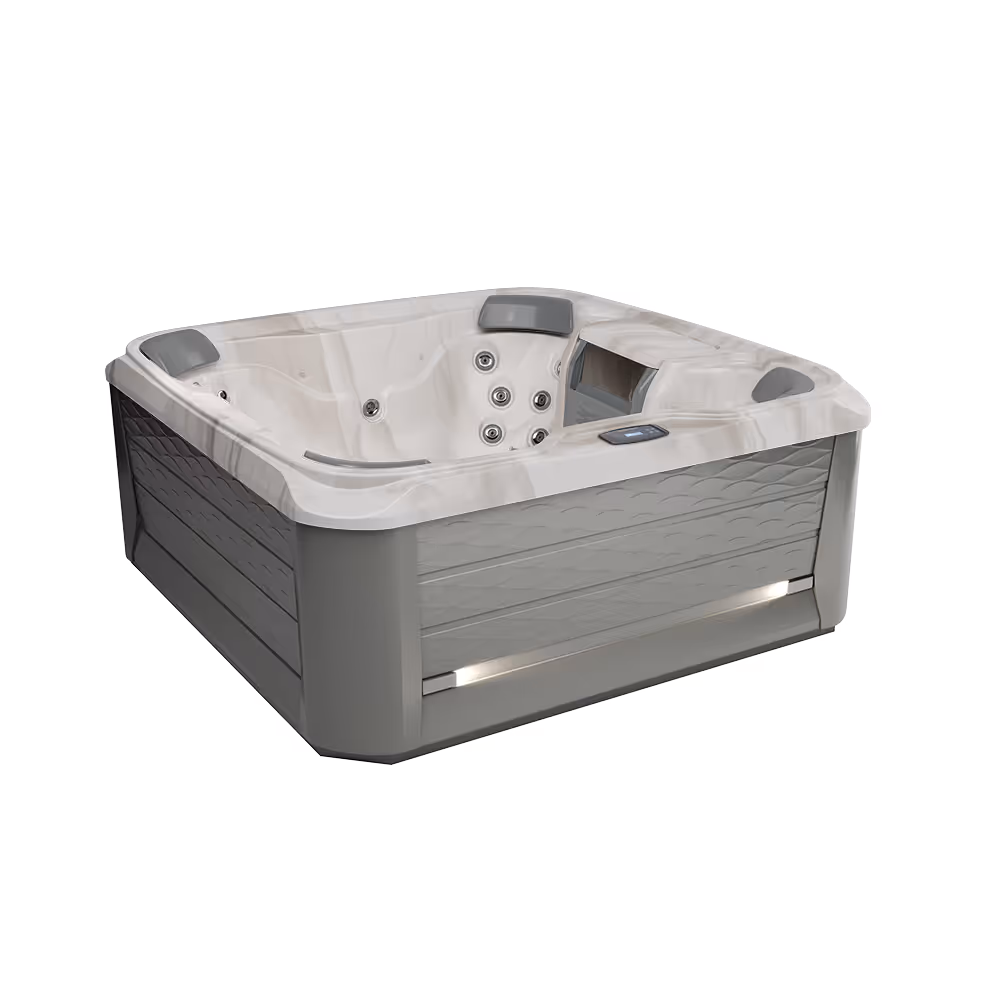

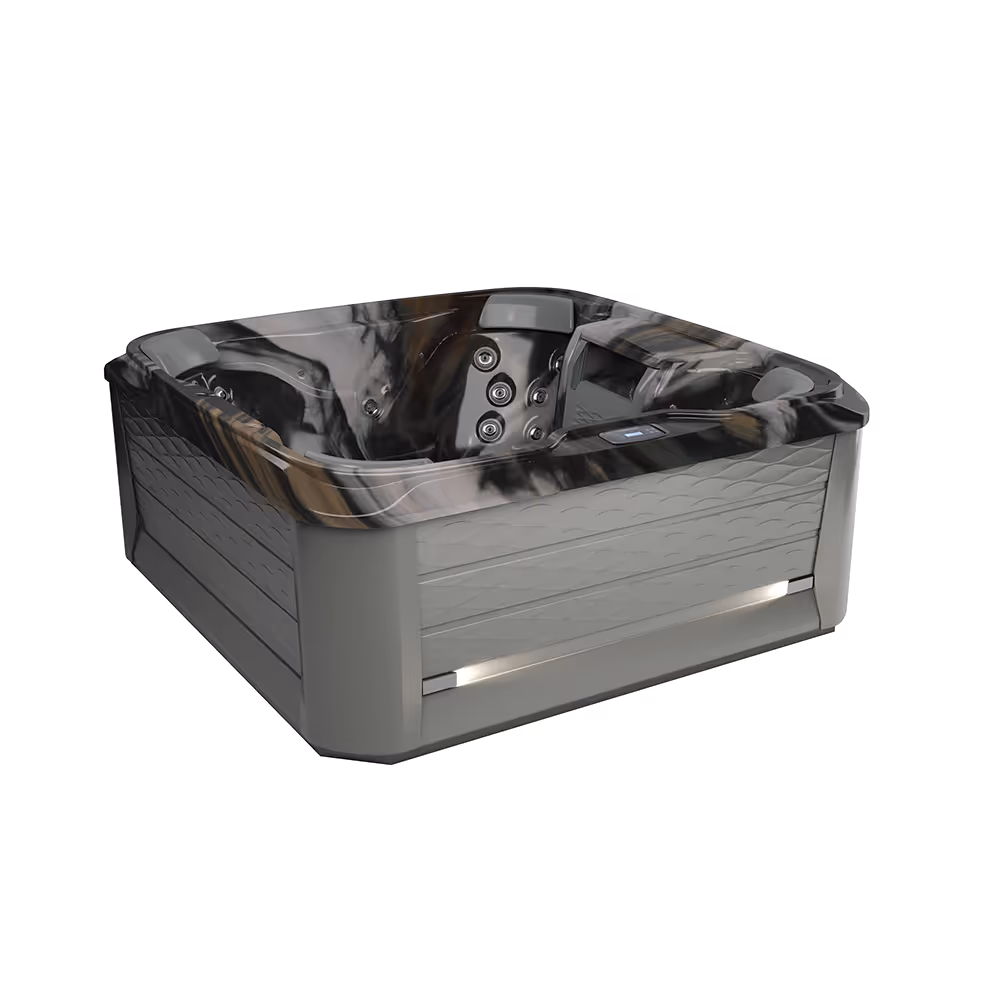

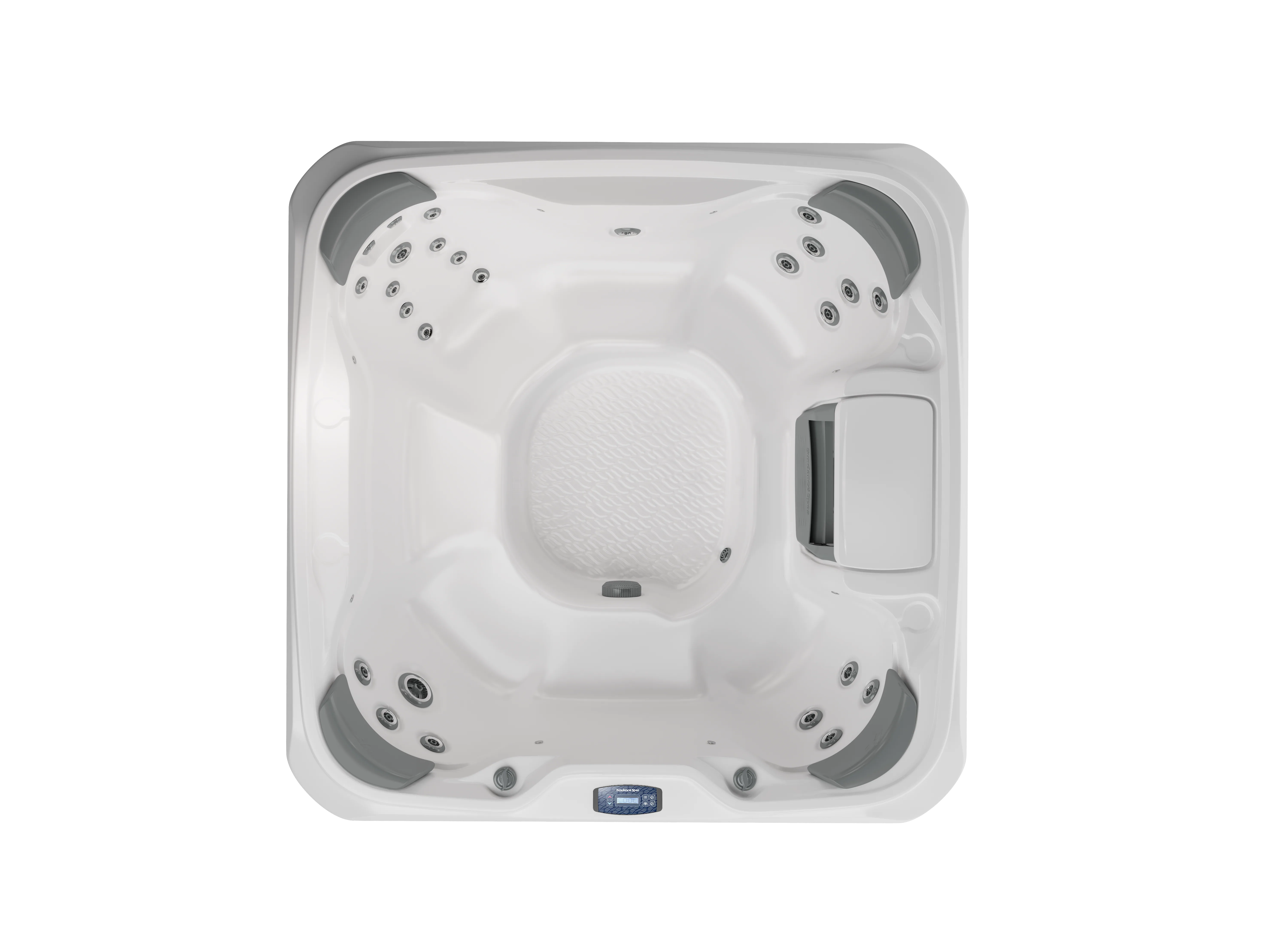

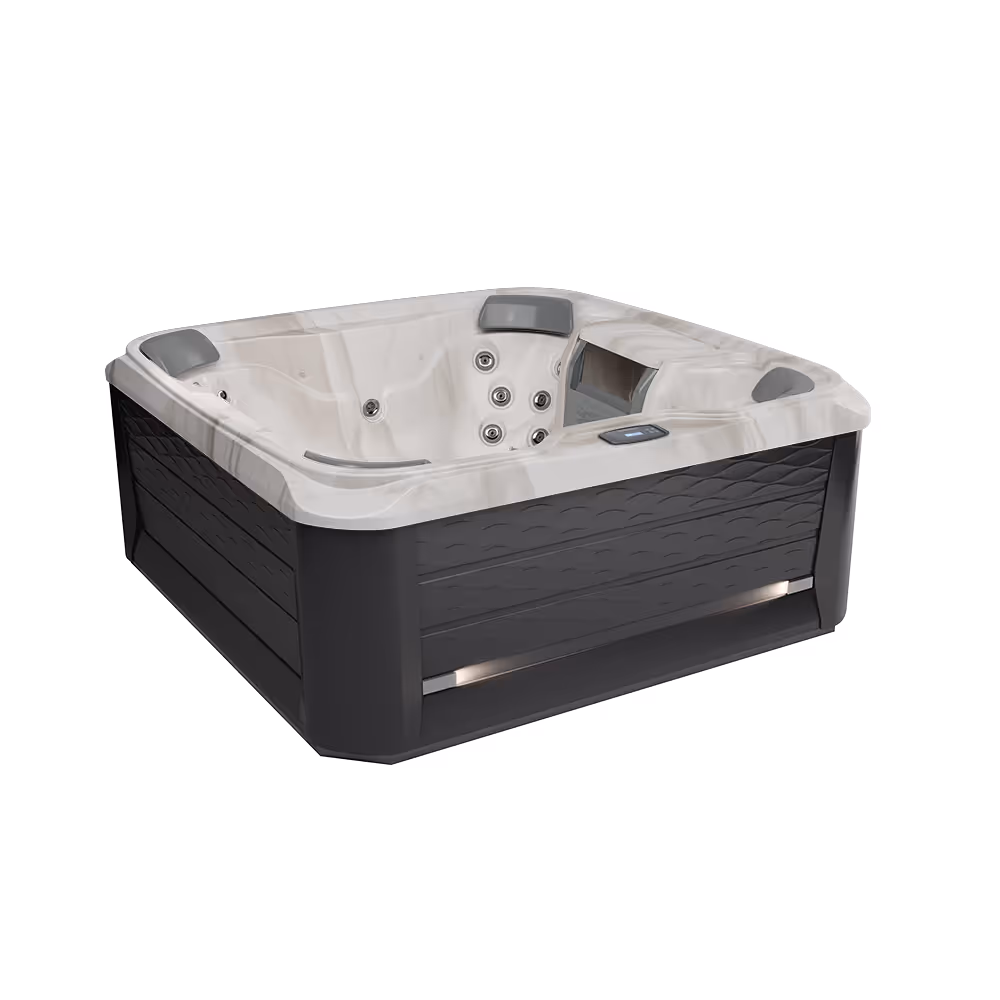

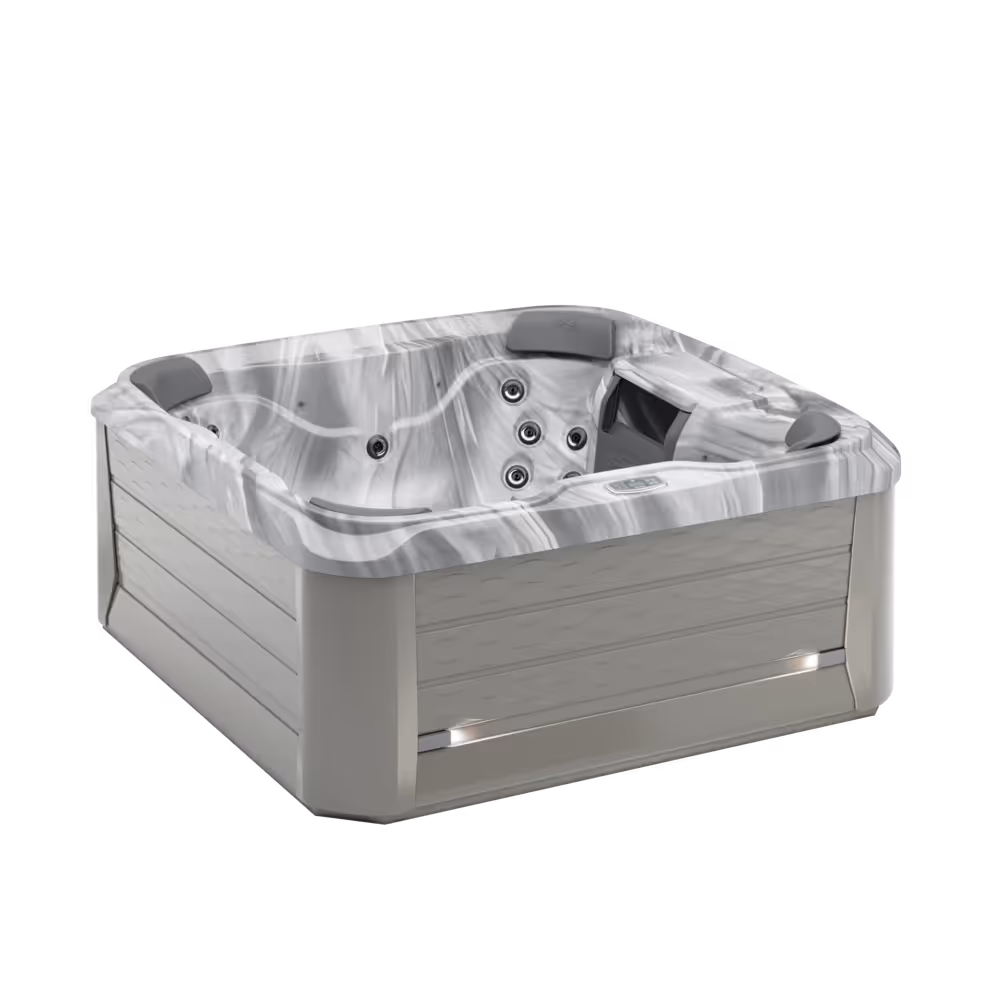

Perfect for small spaces or patios, the Prado® spa offers seats with varying massage combinations that will surely leave you feeling renewed. Broad coverage back jets banish discomfort in large muscles. Unique to the 680™ Series, a pivot bench seat with targeted back relief fosters communication and makes it easy to move around. And, a textured foot well designed for tactile therapy houses an asymmetric foot dome for full body relief.

Seating & Jets

Bento card background

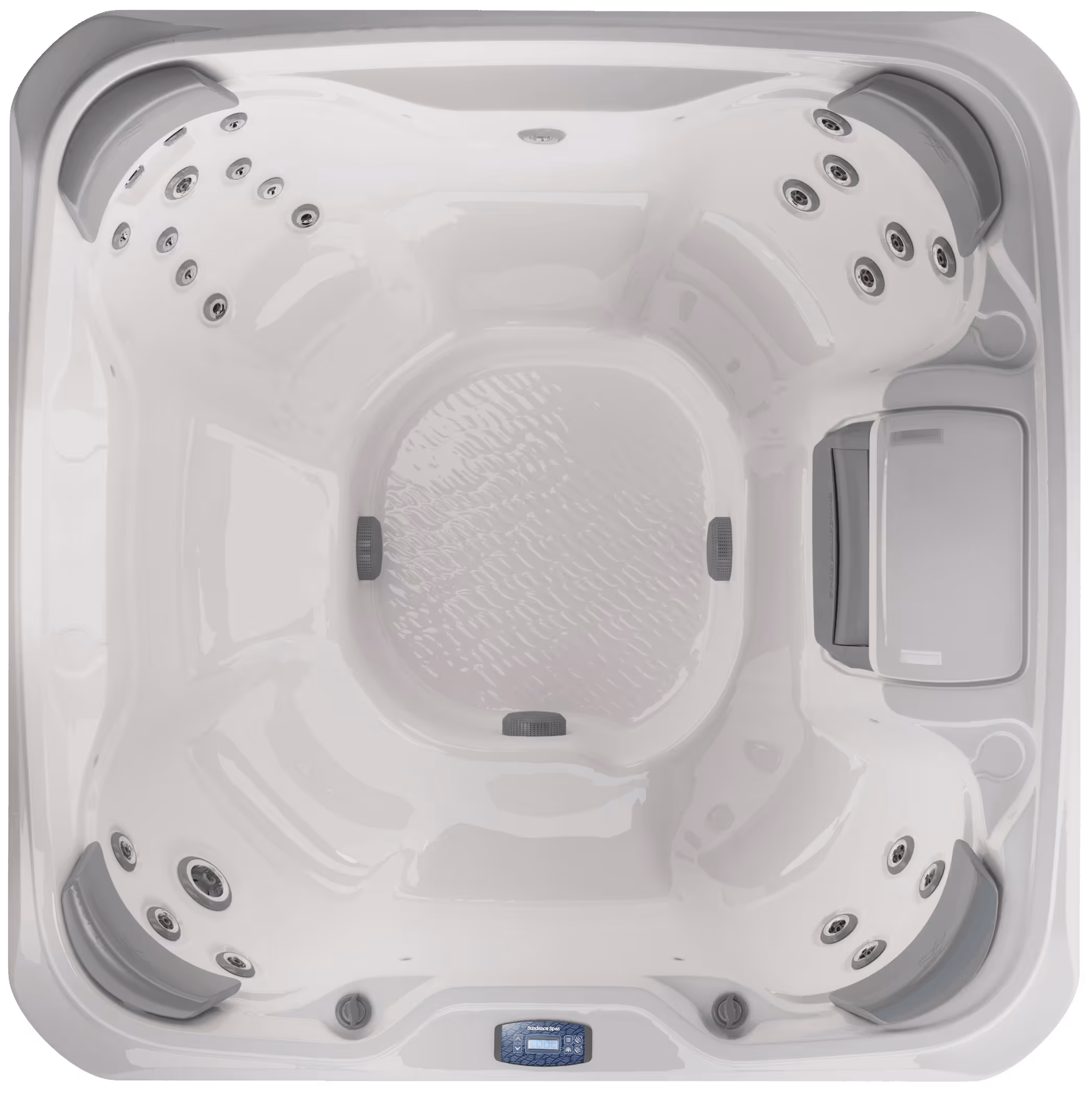

Pivot Bench Seat

A unique pivot bench with targeted back jets fosters easy movement and conversation within the spa — paired with a textured foot well and asymmetric foot dome for full-body relief.

Bento card background

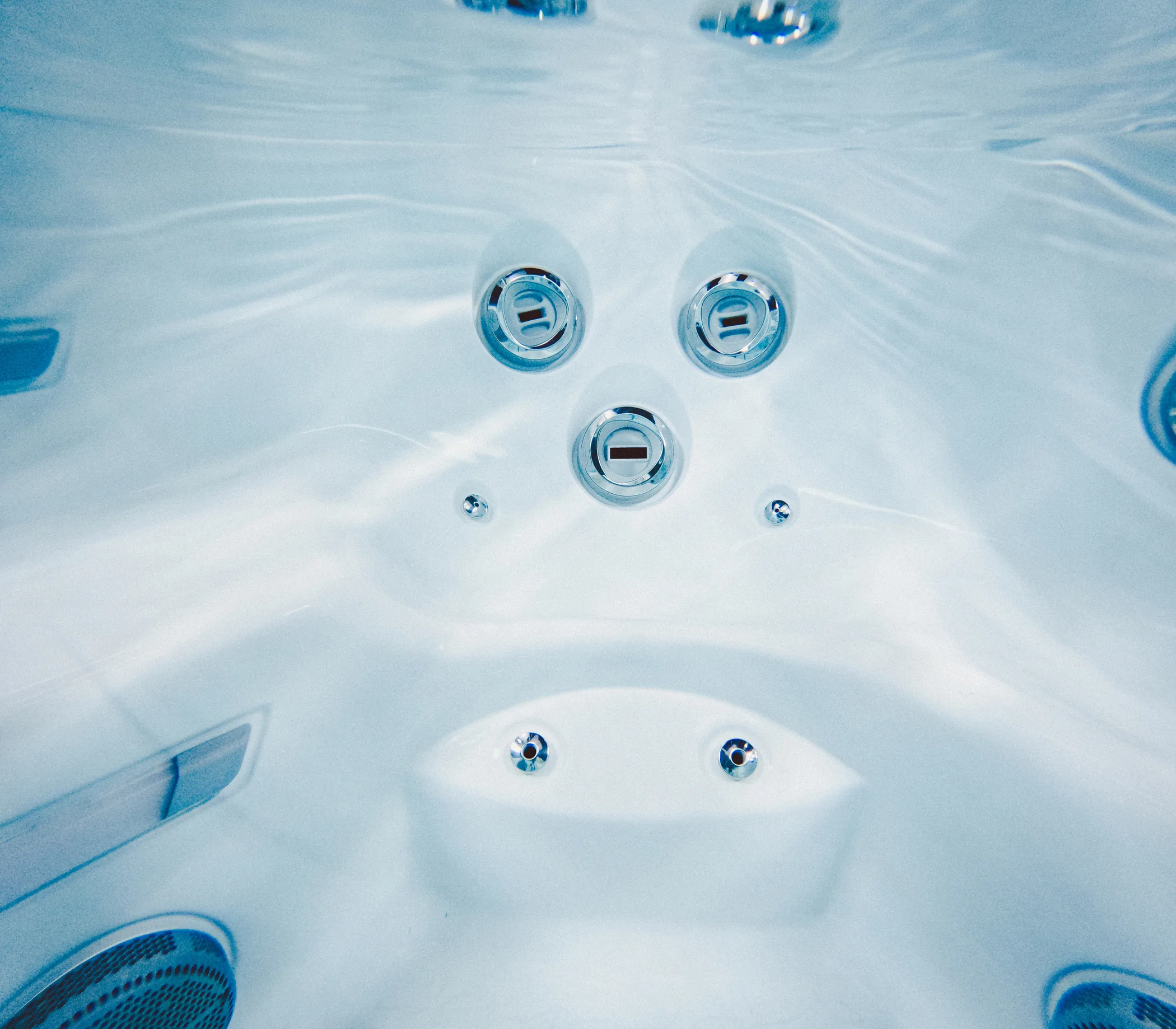

Back Coverage Seat

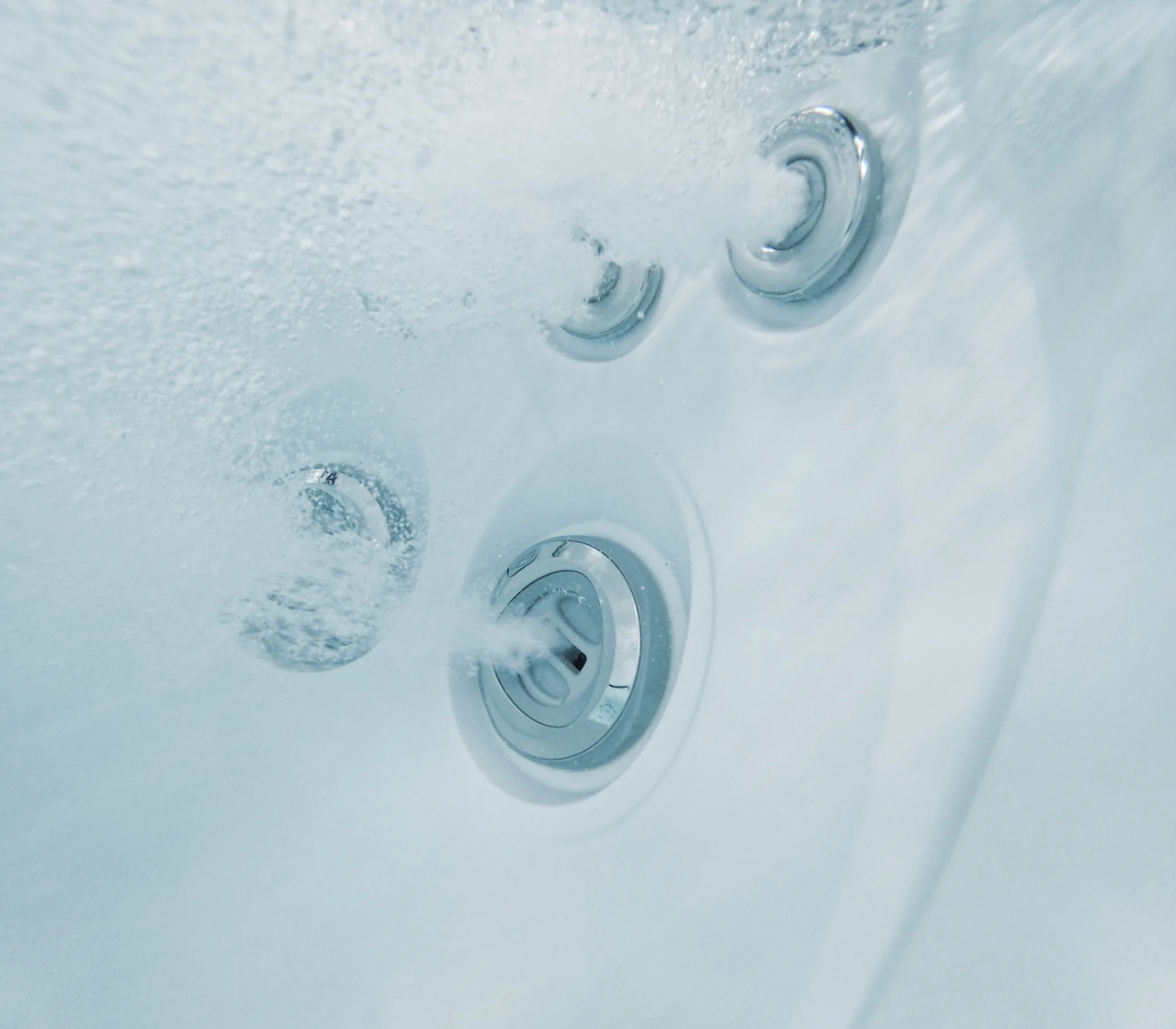

Broad-coverage jets work across large back muscles to banish discomfort and release tension, making every soak a chance to reset after a demanding day.

Prado Features

Everything in this spa is designed with intention — so every soak feels effortless, every gathering feels natural, and every detail works quietly in the background.

Bento card background

Plug and Play Model

Can be plugged into standard 120v outlet without additional electrical requirements.

Bento card background

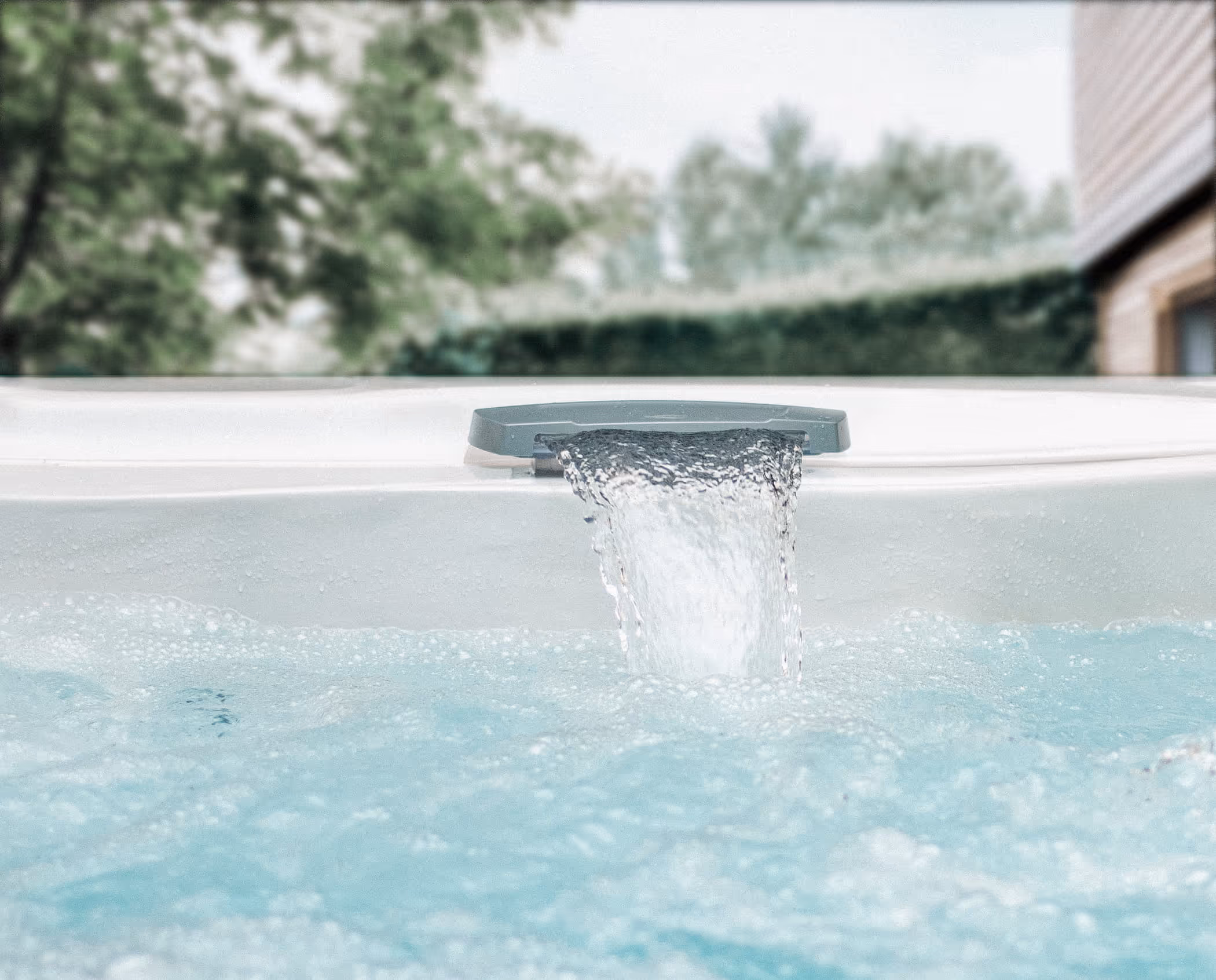

Lighting and Waterfalls

Standard lighting brightens up the interior and soothing waterfall adds ambiance.

Bento card background

Clean Water

CLEARRAY Active Oxygen™ technology and a 50 square foot vertical filter raises the bar on traditional filtration.

Bento card background

Clean Water

CLEARRAY Active Oxygen™ technology and a 50 square foot vertical filter raises the bar on traditional filtration.

Specifications

Seats
5
Jets
26
Dimensions
80 x 80 x 33 IN
Dimensions (cm)
204 x 204 x 84 CM
Width
80 in
Height
33 in
Width (cm)
204 cm
Height (cm)
84 cm
Length (cm)
204 cm
Volume
275 gal
Volume (L)
1041 L
Dry Weight
603 lb / 274 kg
Dry Weight (kg)
274 kg
Filled Weight
2859 lb
Filled Weight (kg)
1298 kg
Amperage
North America Convertible Model (60 Hz): 120 VAC@15A with Supplied GFCI Cord or 240 VAC@30A or 40A (Hard Wired Only); Export (50 Hz): 230-240 VAC@1x16A, 1x32A or 2 out of 3-phase (see manual); or Suitably Rated Circuit Breaker to Comply with Local Electrical Regulations. Certain Countries May Require 2 Power Inputs; Two GFCI/RCD Breakers are Required for This Configuration.
Primary Pump
North America (60 Hz): 2-Speed, 2.5 HP brake, 1.5 HP continuous, 48 Frame Export (50 Hz): 2-Speed, 2.0 HP continuous
Circulation Pump
No
Water Management System
Factory installed ClearRay Active Oxygen® System
Filtration System
MicroClean® Mini™ Filter Cartridge System
Filter Type
75 ft² MicroClean® Mini™ Filter Cartridge System
Number of Filters
1

Frequently Asked Questions

View All FAQs

Not always. Seating capacity is based on the number of molded seat positions in the shell, but real-world comfort depends on a few factors. First, body size: larger adults need more legroom, and some seats are designed for average or smaller builds. Second, seat type: a lounge seat occupies footwell space that other seated users share when the lounge is occupied, it can effectively reduce the usable space for everyone else. Third, jet positioning: some seats are designed with specific jet configurations for individual use. A practical rule of thumb: subtract one from the stated capacity to get the number of adults who can soak comfortably at the same time. When you visit a dealer showroom, sit in the actual model you're considering. Wet test sessions are available at many Sundance® dealers so you can evaluate fit and comfort before you commit.

Jets: The number, type, and placement of jets matter more than the total count. Directional jets target specific muscle groups; rotary jets provide a broader massage. Look for adjustable jets so each person can customize the pressure. Pumps: More pumps generally means more jets running simultaneously at full power. A spa with two pumps can deliver a noticeably more powerful experience than one with a single pump. Filtration: Clean water depends on good filtration. Sundance® spas use a multi-stage filtration system that keeps water cleaner with less chemical maintenance. Controls: Intuitive topside controls let you adjust temperature, jets, and lighting easily. Many models also connect to a smartphone app for remote monitoring. Lighting: LED lighting, including underwater and perimeter lights, extends evening use and sets the mood. Insulation: Full-foam insulation retains heat more efficiently, which affects your monthly energy costs. Cover: A well-fitting insulated cover is essential. It retains heat, keeps debris out, and is a safety requirement if children are around.

Your spa needs a solid, level surface that can handle significant weight. A filled hot tub typically weighs between 3,000 and 6,000 pounds depending on size. Poured concrete pads (at least 4 inches thick) are the most common choice. Reinforced decking built to handle the load works well too, as do compacted gravel beds with proper drainage. The surface must be level within 1/4 inch across the entire footprint. Uneven surfaces can cause stress on the cabinet and shell over time. Before you commit to a foundation type, check with your dealer; they know the specific requirements for your model and can connect you with local contractors who've done this before.
