Product Details

Low Profile
Energy Efficient
Fluidix Jet
SmartTub System
SunCooler
Therapy & Recovery

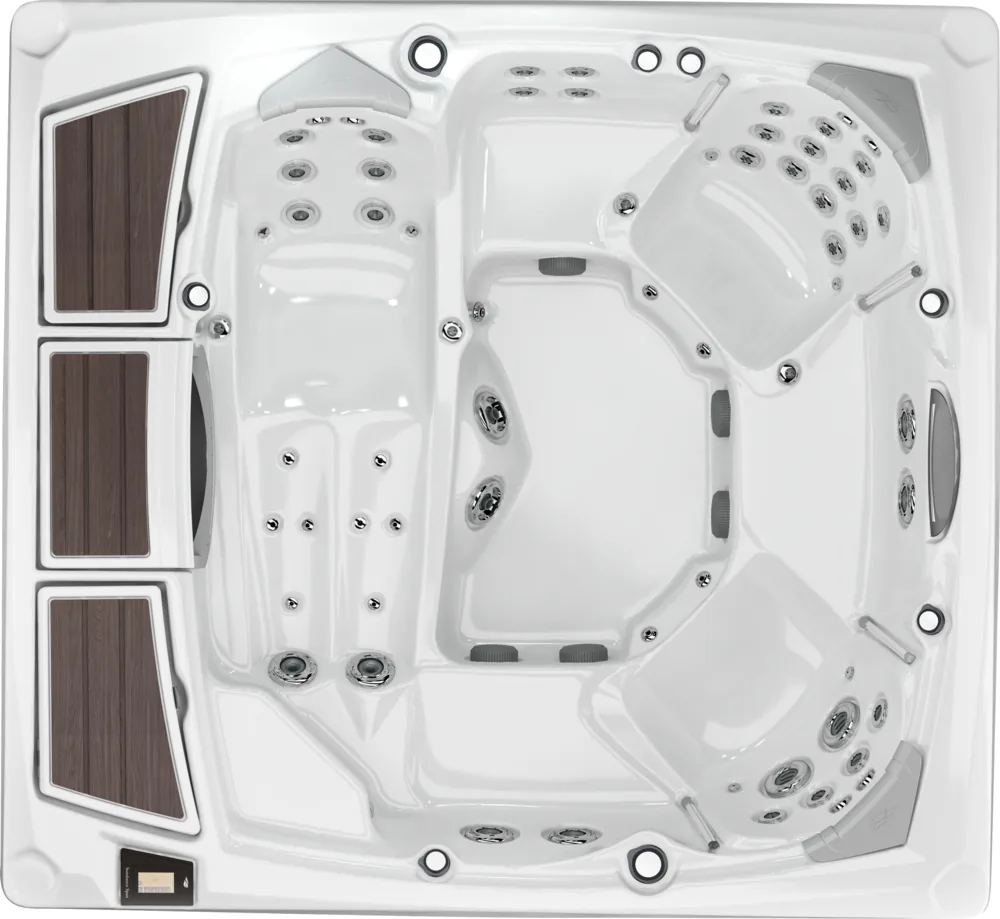

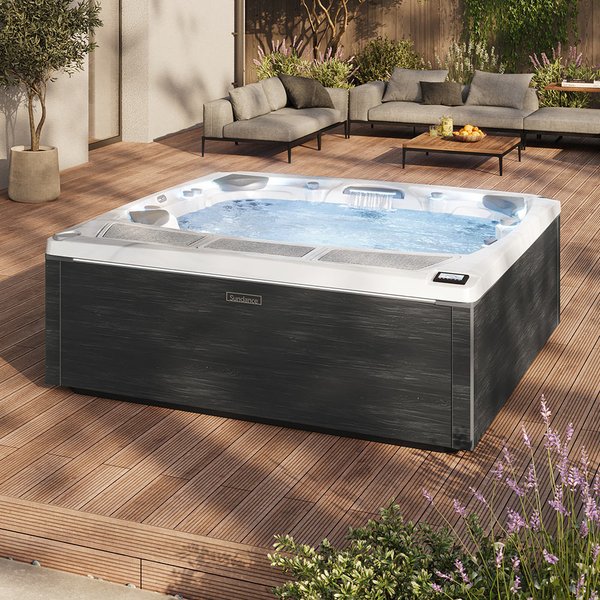

Fall in love at first sight with the crisp, rhythmic texture of the exterior cabinetry highlighted by corner illumination. This eye-catching combination of classic beauty and architectural form is further enhanced by a low-profile flat top rail and beautiful lounge deck with illuminated SunCooler™ cold storage areas for additional seating and convenience. Reminiscent of a reclining chair, the lounge seat is molded to support your body in comfort allowing you to lay back and relax without the worry of floating around. As you surrender fatigued muscles in your neck, back, hips wrists, legs and feet, an amazing full-body massage delivers total relaxation. Throughout the rest of the Claremont® spa, wide seats inspired by some of our most popular models are highlighted by the even glow of LED lighting for both beauty and safety. Silent Air™ injector jets and SunScents® Aromatherapy further enhance the incredible experience.

Seating & Jets

Bento card background

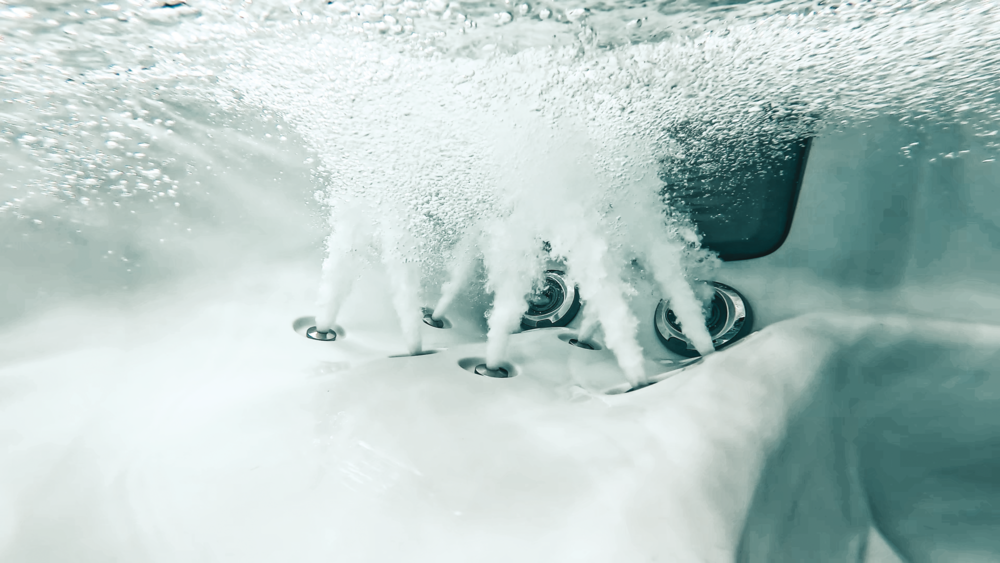

Broad-coverage leg therapy

Only find in the 980™ Series, versatile seats deliver broad coverage therapy to deliver relief to your overworked legs.

Bento card background

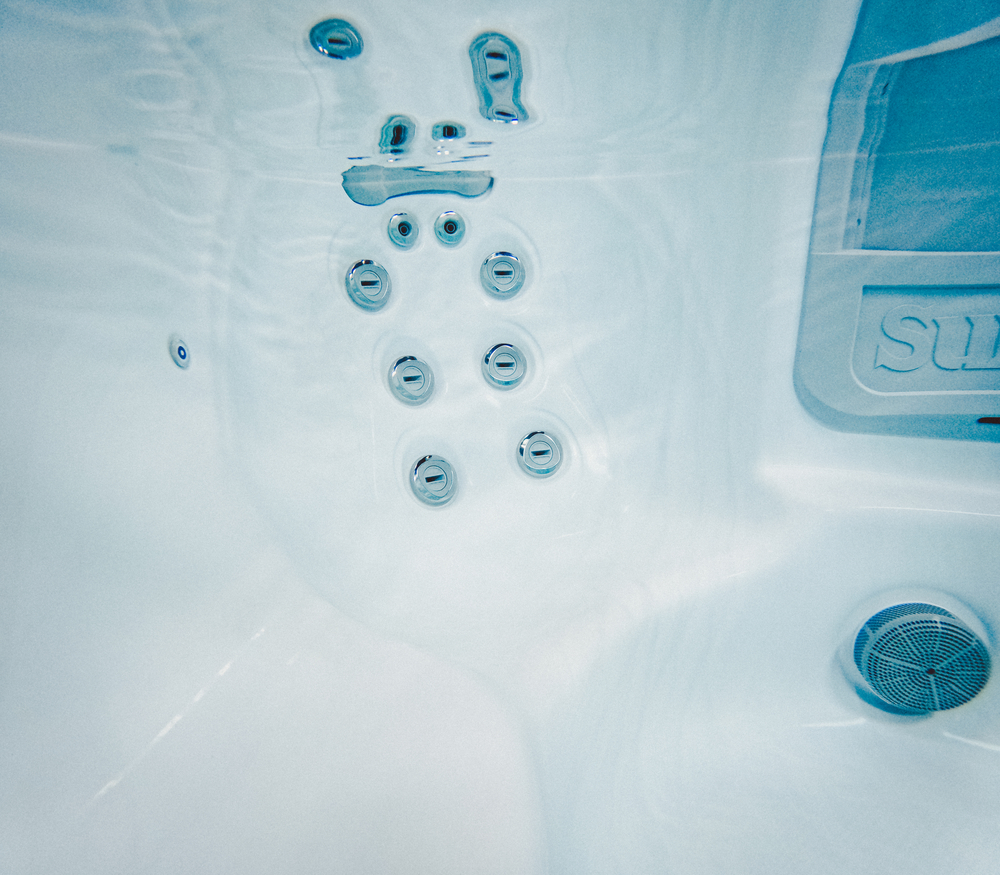

Lounge

Molded to support your body in comfort, you can lay back and relax as you surrender fatigued muscles in your neck, back, hips wrists, legs and feet for a full-body massage.

Bento card background

980™ Series Leg Therapy Seats

Wide, versatile seats deliver broad coverage therapy to overworked legs — a renewal experience exclusive to the 980™ Series, highlighted by LED lighting for added safety and ambiance.

Bento card background

Lighting and Waterfalls

Architectural corner lighting highlights the exterior while color-changing LED lights illuminate built in SunCoolers™, a soothing waterfall and softly highlights key seats.

Bento card background

Low Entry

Low profile height makes it easier for everyone in your family enter and exit the spa.

Bento card background

Controls

Advanced i-Touch Glass Control panel with illuminated smartphone-inspired design eases use day or night and includes SunSmart 2.0 WiFi app for remote control and monitoring convenience.

Bento card background

SunCooler™ and Conversation Deck

Integrated cold storage with illumination, removable lid matching exterior cabinetry and pump-assist drain for convenience. Also serves as additional seating for socializing out of the water without leaving the spa.

Specifications

Seats
6
Jets
59
Dimensions
92 x 100 x 34 IN
Dimensions (cm)
234 x 254 x 87 CM
Width
100 in
Height
34 in
Width (cm)
254 cm
Height (cm)
87 cm
Length (cm)
234 cm
Volume
405 gal
Volume (L)
1534 L
Dry Weight
1045 lb / 475 kg
Dry Weight (kg)
475 kg
Filled Weight
4423 lb
Filled Weight (kg)
2007 kg
Amperage
North America (60 Hz): 240 VAC@40A/50A or 60A; Export (50 Hz): 230-240 VAC@1x20A, 1x16A/1x20A, 3x16A (see manual for more configurations); or Suitable Rated Circuit Breaker To Comply With Local Electrical Regulations. Certain Countries May Require 2 Power Inputs; Two GFCI/RCD Breakers are Required For This Configuration.
Primary Pump
North America (60 Hz): 1-Speed/2.5 HP Continuous, 11.3A Max., 56 Frame
Secondary Pump
North America (60 Hz): 1-Speed/2.5 HP Continuous, 11.3A Max., 56 Frame
Circulation Pump
Yes
Water Management System
Dynamic Flow Circulation System; Factory installed ClearRay Active Oxygen® System
Filtration System
ClearRay Active Oxygen® System
Filter Type
MicroClean® Ultra II Filtration System, 130 ft² (2 interlocking cartridge filters)
Number of Filters
2
Diverter Valves
2

Frequently Asked Questions

View All FAQs

Your spa needs a solid, level surface that can handle significant weight. A filled hot tub typically weighs between 3,000 and 6,000 pounds depending on size. Poured concrete pads (at least 4 inches thick) are the most common choice. Reinforced decking built to handle the load works well too, as do compacted gravel beds with proper drainage. The surface must be level within 1/4 inch across the entire footprint. Uneven surfaces can cause stress on the cabinet and shell over time. Before you commit to a foundation type, check with your dealer; they know the specific requirements for your model and can connect you with local contractors who've done this before.

Jets: The number, type, and placement of jets matter more than the total count. Directional jets target specific muscle groups; rotary jets provide a broader massage. Look for adjustable jets so each person can customize the pressure. Pumps: More pumps generally means more jets running simultaneously at full power. A spa with two pumps can deliver a noticeably more powerful experience than one with a single pump. Filtration: Clean water depends on good filtration. Sundance® spas use a multi-stage filtration system that keeps water cleaner with less chemical maintenance. Controls: Intuitive topside controls let you adjust temperature, jets, and lighting easily. Many models also connect to a smartphone app for remote monitoring. Lighting: LED lighting, including underwater and perimeter lights, extends evening use and sets the mood. Insulation: Full-foam insulation retains heat more efficiently, which affects your monthly energy costs. Cover: A well-fitting insulated cover is essential. It retains heat, keeps debris out, and is a safety requirement if children are around.

Not always. Seating capacity is based on the number of molded seat positions in the shell, but real-world comfort depends on a few factors. First, body size: larger adults need more legroom, and some seats are designed for average or smaller builds. Second, seat type: a lounge seat occupies footwell space that other seated users share when the lounge is occupied, it can effectively reduce the usable space for everyone else. Third, jet positioning: some seats are designed with specific jet configurations for individual use. A practical rule of thumb: subtract one from the stated capacity to get the number of adults who can soak comfortably at the same time. When you visit a dealer showroom, sit in the actual model you're considering. Wet test sessions are available at many Sundance® dealers so you can evaluate fit and comfort before you commit.
