Product Details

Energy Efficient
Fluidix Jet
SmartTub System
Therapy & Recovery

The Vistamar™ spa delivers more depth, and we aren’t talking about water. We mean a depth of detail that not many other spas can match. Vistamar™ provides a spacious interior, seating for up to six adults, and adjustable seat heights to accommodate diverse body types.

Featuring the innovative Fluidix® PT jet, Vistamar™ provides unparalleled percussive therapy designed specifically for pain in the lower back. Strategically positioned Focus-Relief jets and the Sundance Air Blower add to the pain-relieving bliss, ensuring a comprehensive blend of deep and gentle tissue therapy throughout your entire body.

Don’t have a ton of space? No problem at all. Vistamar™ maintains a compact exterior size that fits perfectly in any garden or outdoor area. And the exterior is made to look better for longer, all thanks to the Sunstrong® Frame that’s designed to last 20 years or more – all made from fully recyclable content.

If you need a little more room, upgrade to Optima, and if Vistamar™ is sized right but just outside your budget, take a look at the 680 Edison.

330 gal
3626 lb
84 x 84 x 37 IN
North America (60 Hz): 240 VAC@40A, 50A or 60A; Export (50 Hz): 230-240 VAC@1x32A or 1x16A/1x20A, 3x16A (see manual for more configurations); or Suitably Rated Circuit Breaker to Comply with Local Electrical Regulations. Certain Countries may Require 2 Power Inputs; Two GFCI/RCD Breakers are Required for This Configuration.

Seating & Jets

Bento card background

Focus-Relief® Jets

Strategically placed Focus-Relief jets work alongside the Air Blower to deliver a comprehensive blend of deep and gentle tissue therapy across the entire body.

Bento card background

Fluidix® PT™ Percussive Therapy Jet

Engineered specifically for lower back pain, the innovative Fluidix® PT jet delivers targeted percussive therapy to the areas that need it most — without overpowering the body.

Vistamar Features

Everything in this spa is designed with intention — so every soak feels effortless, every gathering feels natural, and every detail works quietly in the background.

Bento card background

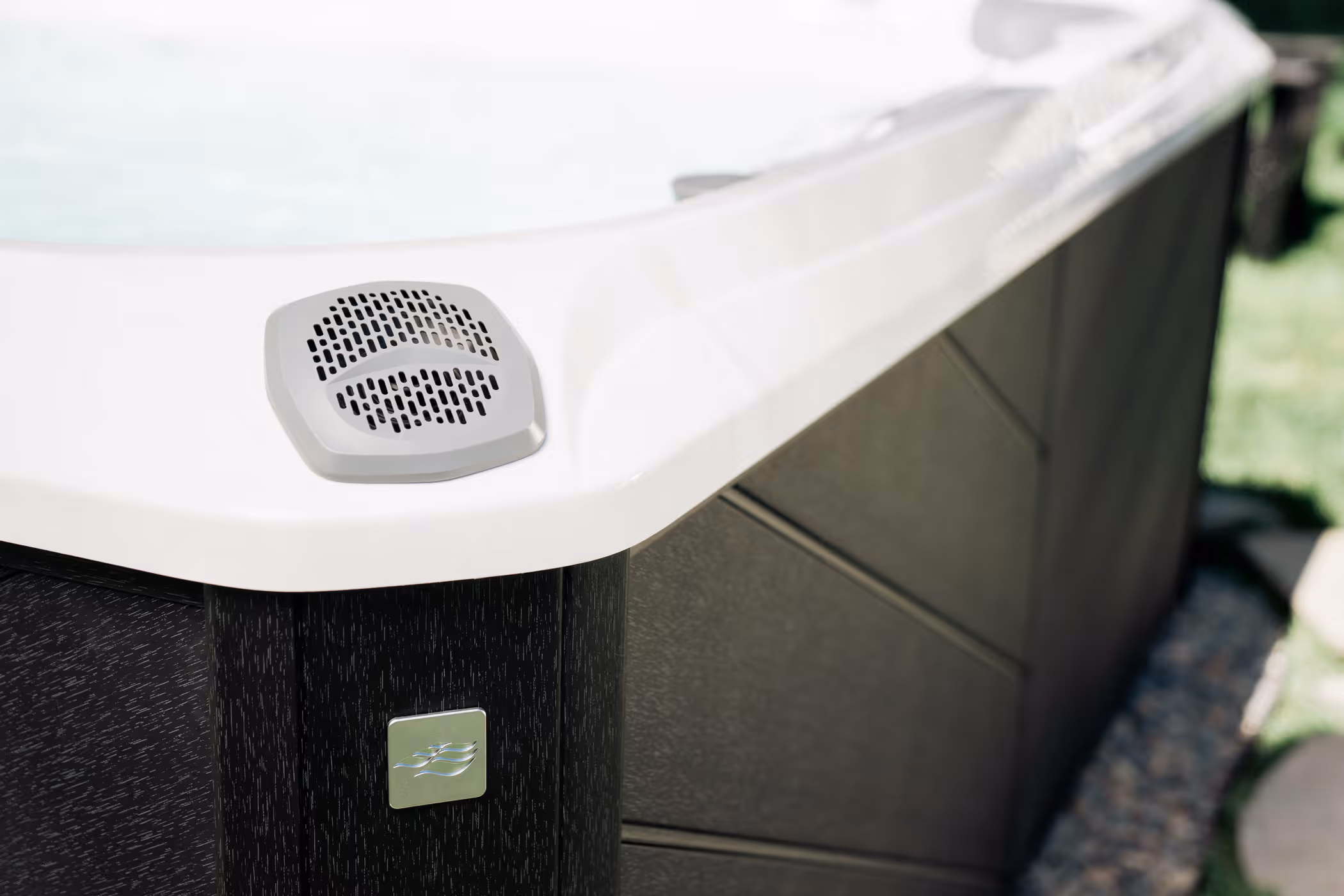

Entertainment Package (Optional)

Set the mood with music from the new stereo system. Two premium 5-inch speakers, an 8-inch subwoofer and wireless inductive phone charger lets you remove call-and-text distractions for a totally immersive experience.

Bento card background

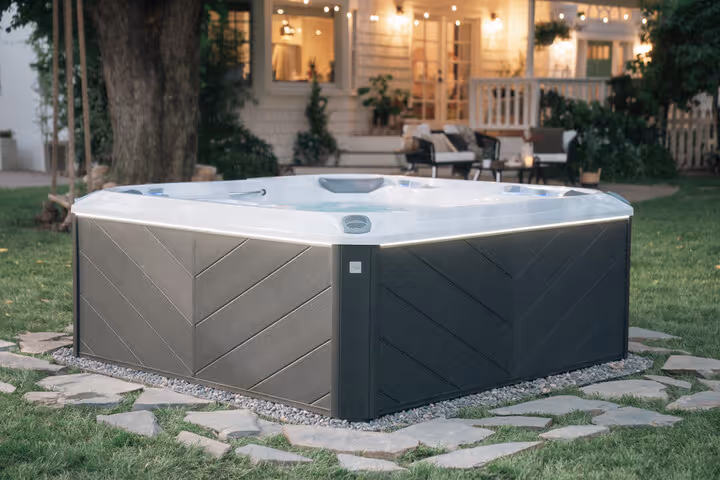

SunStrong® Frame

Embrace an environmentally conscious choice with the innovative Sunstrong™ Steel Frame, carefully crafted from a combination of the most durable and sustainable materials.

Bento card background

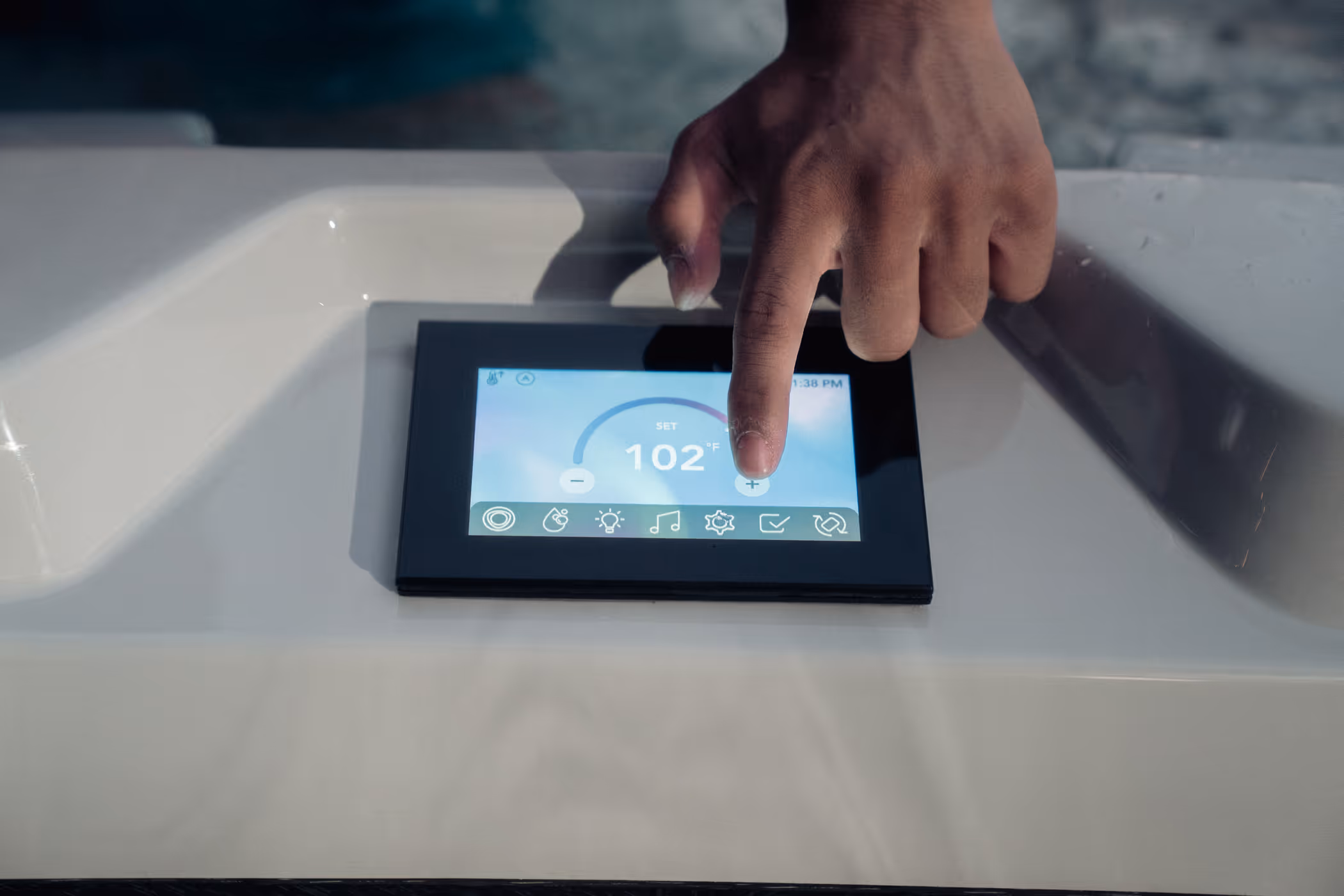

Controls

Advanced Touch Control Panel amplifies ease of use with a glowing, color touchscreen control and icon-driven menus, so programming your spa is easy day or night. Compatible with optional SmartTub™ System.

Bento card background

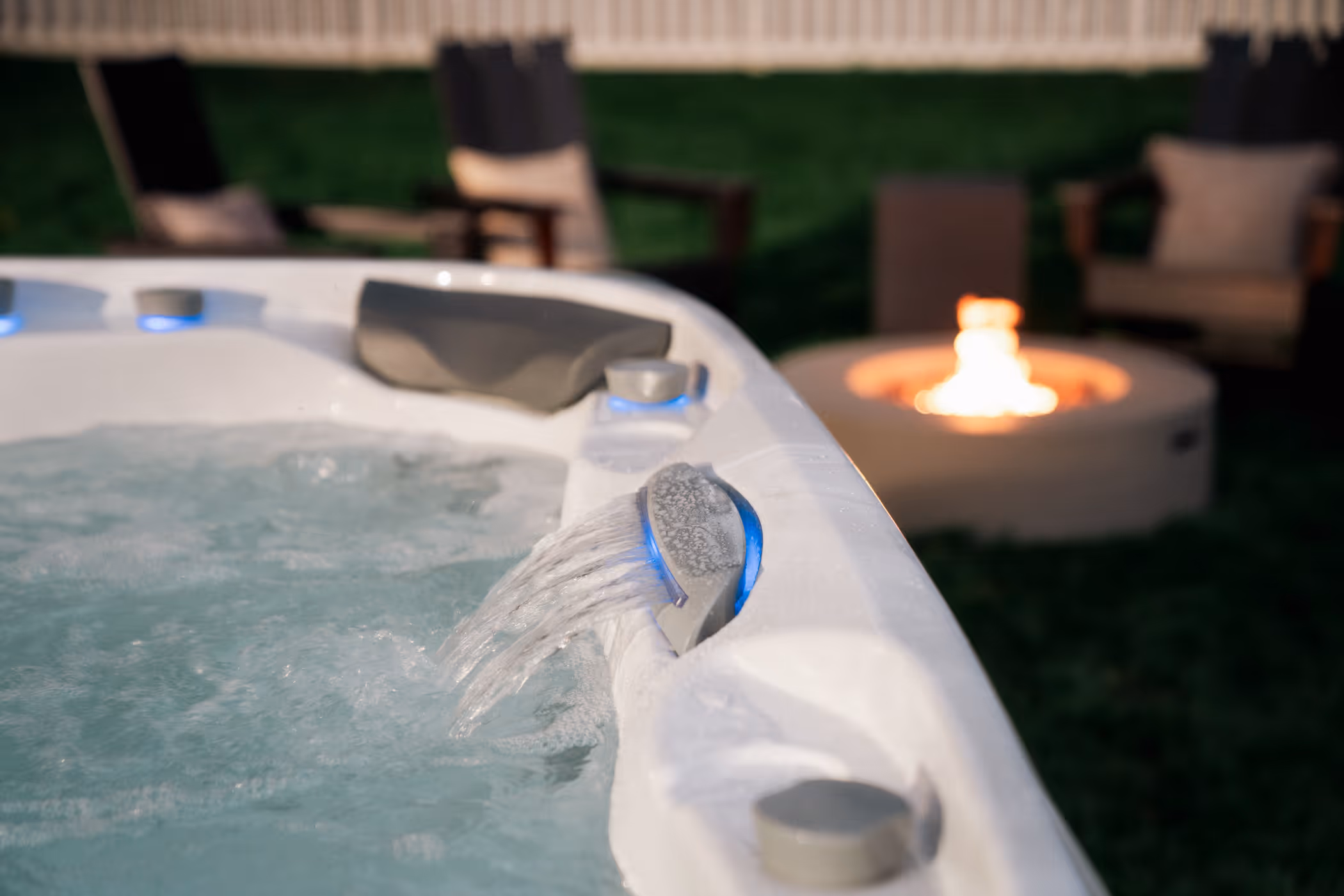

Lighting and Waterfalls

Multicolor SunGlow™ LED lighting brightens up the spa interior, waterfall, footwell and backlit grab bar. Paired with elegant exterior LED lighting.

Bento card background

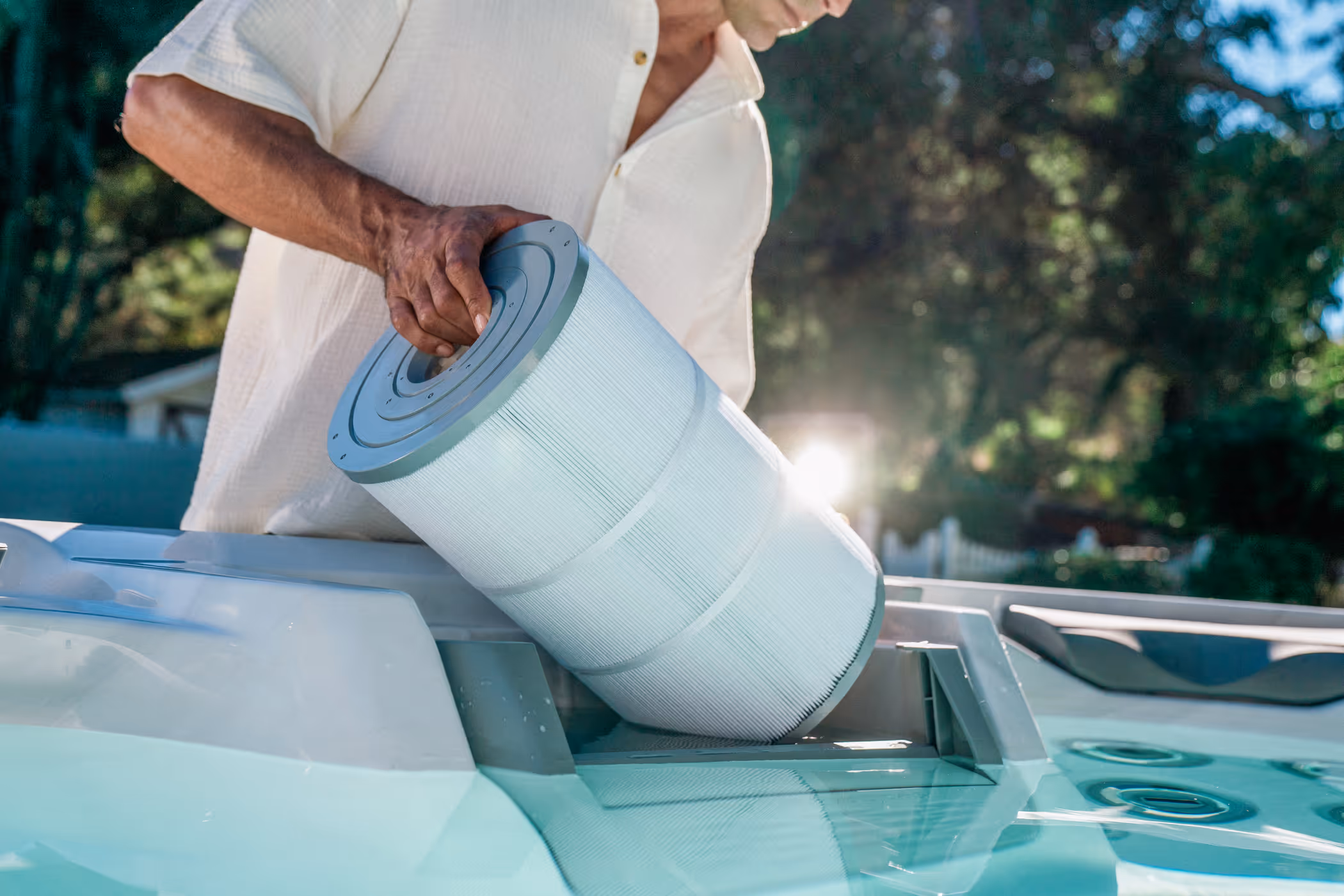

Clean Water

CLEARRAY Active Oxygen™ technology and an advanced MicroClean® Ultra filtration system with horizontal filter set the standard for robust, efficient water filtration. Includes CLEARRAY® On-Demand.

Specifications

Seats
6
Jets
41
Dimensions
84 x 84 x 37 IN
Dimensions (cm)
214 x 214 x 94 CM
Width
84 in
Height
37 in
Width (cm)
214 cm
Height (cm)
94 cm
Length (cm)
214 cm
Volume
330 gal
Volume (L)
1250 L
Dry Weight
874 lb / 397 kg
Dry Weight (kg)
397 kg
Filled Weight
3626 lb
Filled Weight (kg)
1646 kg
Amperage
230–240 VAC @ 32A
Primary Pump
1-Speed/2.0 HP Continuous, 7.0A Max.
Secondary Pump
1-Speed/2.0 HP Continuous, 7.0A Max.
Circulation Pump
Yes
Water Management System
Dynamic Flow Circulation System; Factory installed ClearRay Active Oxygen® System
Filtration System
MicroClean® Ultra Filtration
Filter Type
MicroClean® Ultra II Filtration System, 130 ft² (2 interlocking cartridge filters)
Number of Filters
1
Diverter Valves
1

Frequently Asked Questions

View All FAQs

Not always. Seating capacity is based on the number of moulded seat positions in the shell, but real-world comfort depends on a few factors. First, body size: larger adults need more legroom, and some seats are designed for average or smaller builds. Second, seat type: a lounge seat occupies footwell space that other seated users share when the lounge is occupied, it can effectively reduce the usable space for everyone else. Third, jet positioning: some seats are designed with specific jet configurations for individual use. A practical rule of thumb: subtract one from the stated capacity to get the number of adults who can soak comfortably at the same time. When you visit a dealer showroom, sit in the actual model you're considering. Wet test sessions are available at many Sundance® dealers so you can evaluate fit and comfort before you commit.

Jets: The number, type, and placement of jets matter more than the total count. Directional jets target specific muscle groups; rotary jets provide a broader massage. Look for adjustable jets so each person can customise the pressure. Pumps: More pumps generally means more jets running simultaneously at full power. A spa with two pumps can deliver a noticeably more powerful experience than one with a single pump. Filtration: Clean water depends on good filtration. Sundance® spas use a multi-stage filtration system that keeps water cleaner with less chemical maintenance. Controls: Intuitive topside controls let you adjust temperature, jets, and lighting easily. Many models also connect to a smartphone app for remote monitoring. Lighting: LED lighting, including underwater and perimeter lights, extends evening use and sets the mood. Insulation: Full-foam insulation retains heat more efficiently, which affects your monthly energy costs. Cover: A well-fitting insulated cover is essential. It retains heat, keeps debris out, and is a safety requirement if children are around.
